Chapter 4. CapiScope CAM1 Components

A CapiScope CAM1 system comprises the following components:

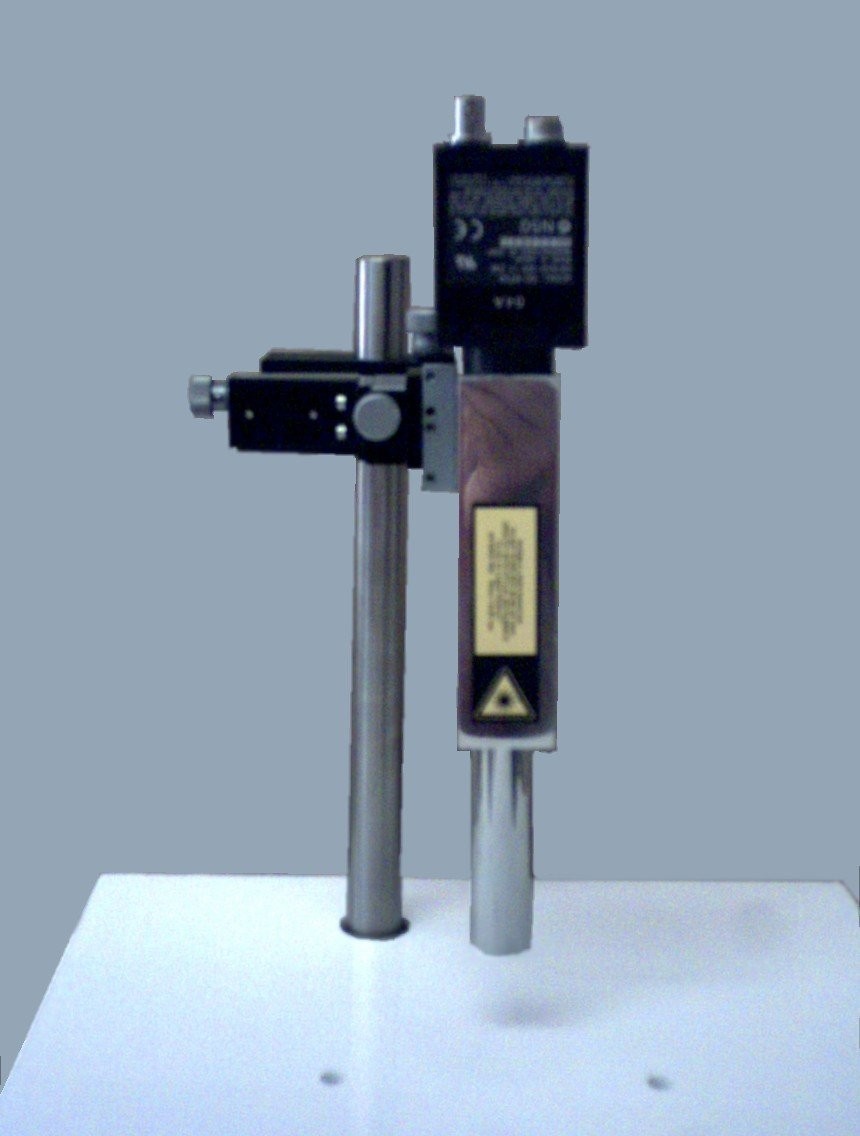

• CAM1



  Includes CCD camera, laser, laser driver electronics, detector, detector electronics, optics, special microscope objective.

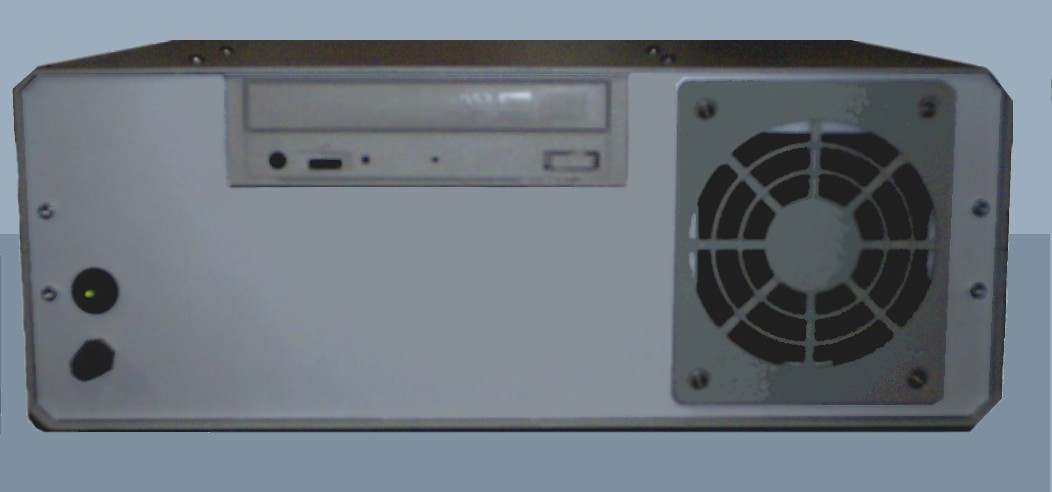

• CapiScope PU Processing Unit



  This provides power, User interface and processing for the CAM1.

• XYZ Micropositioners

  These provide fine focusing and positioning for the CAM1.

• Workplatform

  This provides a strong rigid stand for the CAM1.

• Finger Vice

  Enables a finger to be held in position under the CAM1.

• Light Source

  An array of ultra bright light emitting diodes provides light for imaging with the CCD camera.

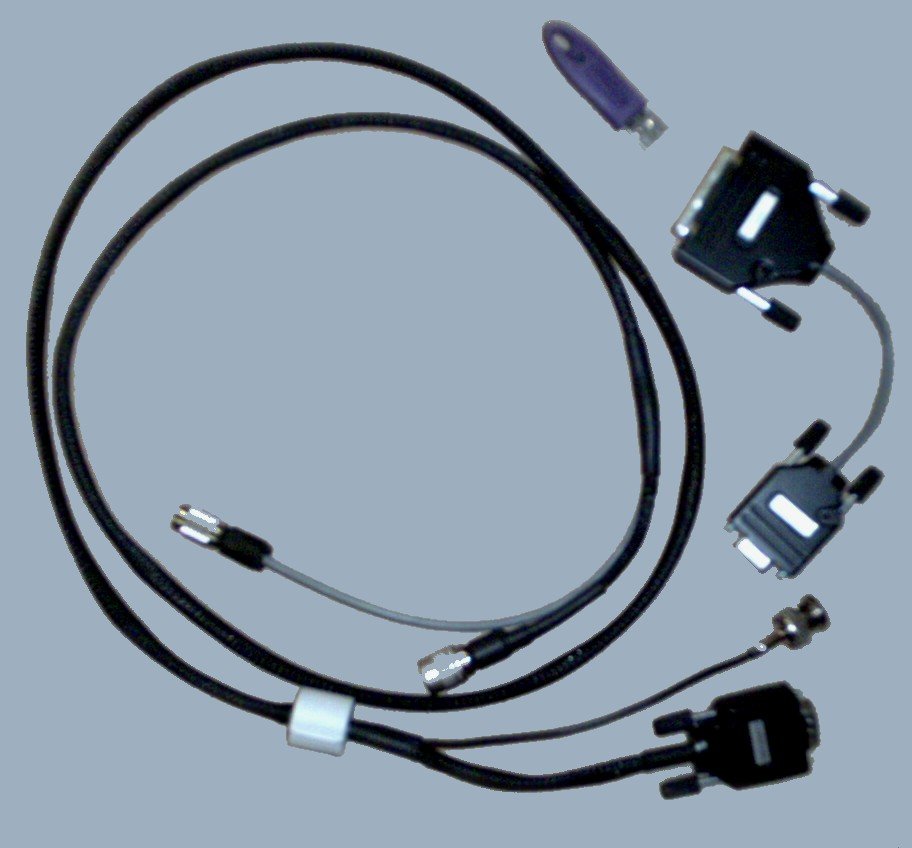

• Cables

  •

  • CAM1-PU Cable

    Special cable for connection between the CAM1 and the IPS module.

  • ADC-ADC Cable

    Special cable for connection to the CAM1 ADC Analogue to Digital interface card.
