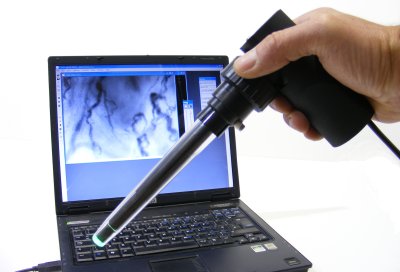

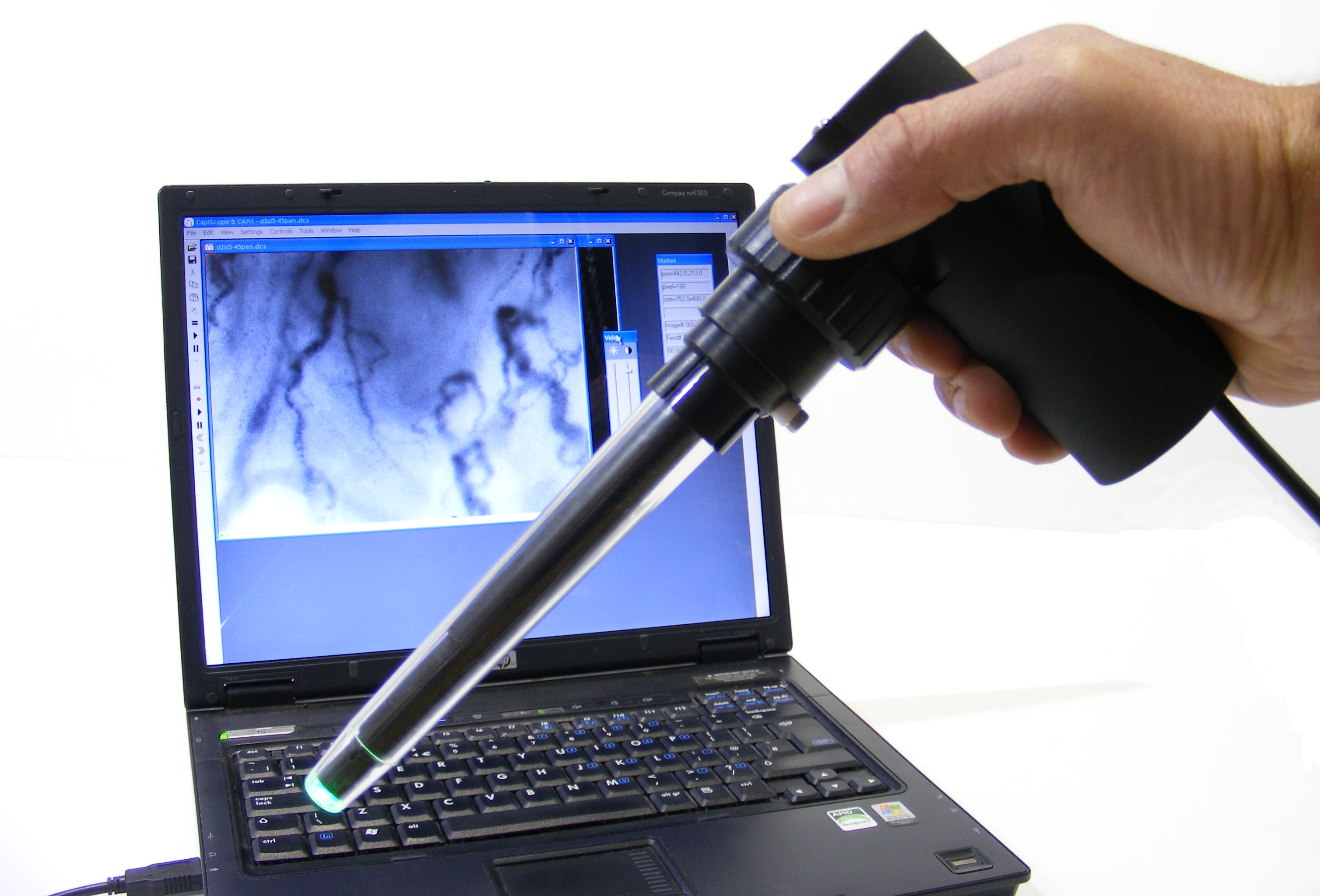

CapiScope HVCS Handheld Video Capillaroscopy System

Handheld sublingual


  • Includes high quality monochrome USB camera.
  • Simple single USB connection for video data and power.
  • Includes narrow band safe low voltage cold light epi-illumination for high contrast images.
  • Single Use plastic caps.
  • Range of interchangeable lenses available for magnifications from 2x to 10x.
  • Strobed illumination reduces blood cell blurring.
  • Small and lightweight.
  • CapiScope capillaroscopy analysis software included.
  • Improved image quality and function replacement for Cytometrics OPS Cytoscan.
  • Improved image quality and function replacement for Microvision Microscan.

Click on images to play video clip.

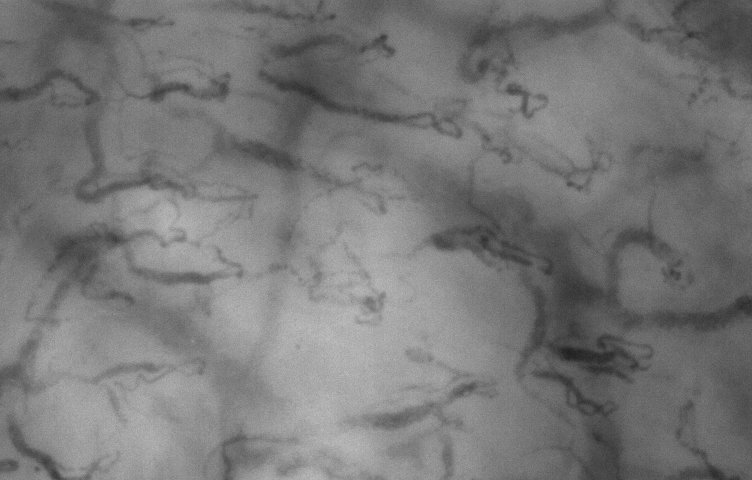

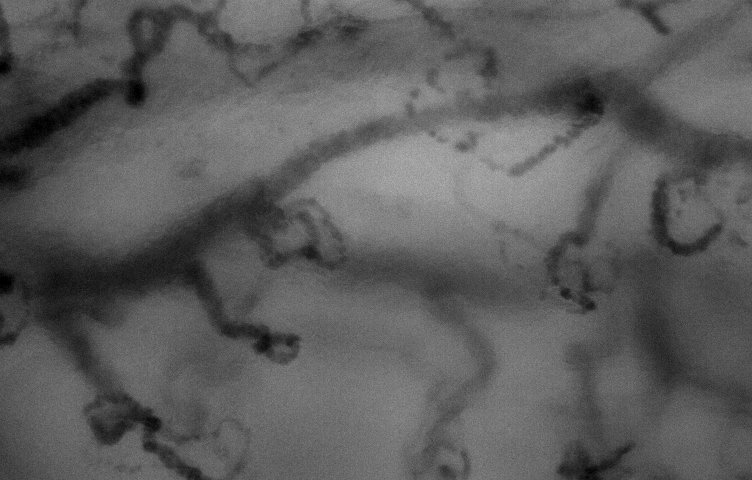

image2 sublingual. low mag lens. image3 sublingual. high mag lens. image4 lip. high mag lens.

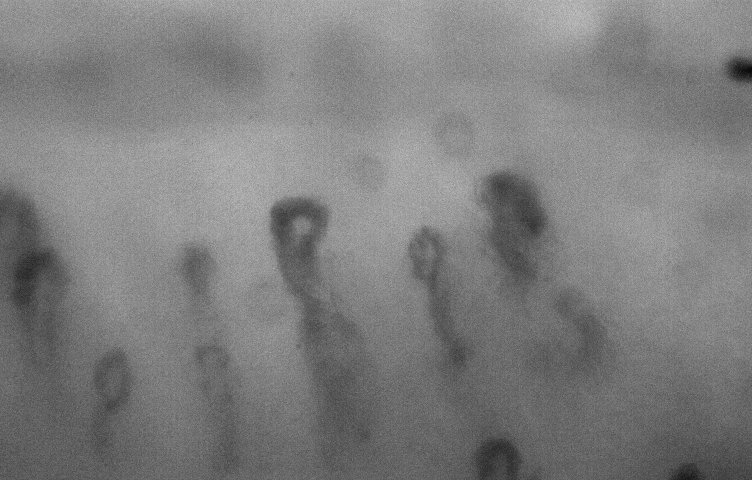

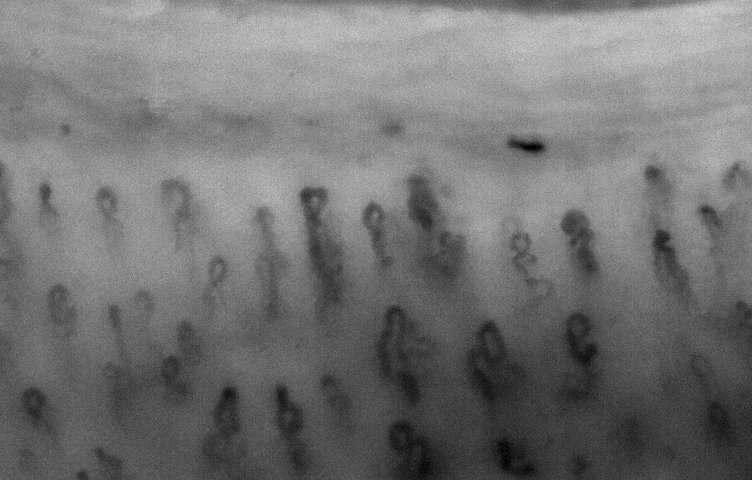

image5 nailfold. low mag lens. image6 nailfold. high mag lens.

Note that CapiScope records video in an uncompressed raw format. Compression used for these examples will have introduced artefacts.

Also note that the CapiScope movement correction is also not shown.

For some example avi video and bmp images, click here."

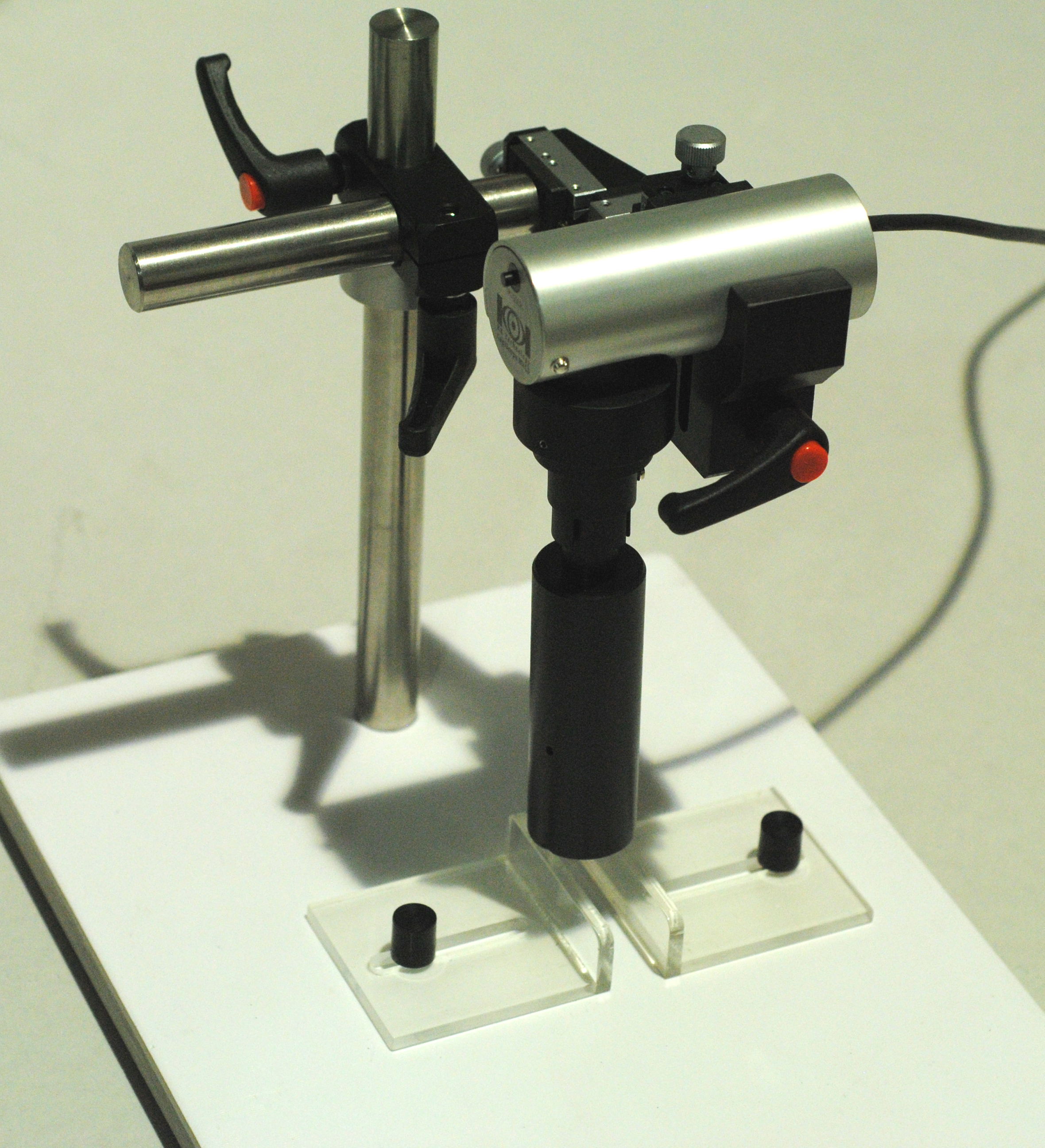

Nailfold


  • Visualize, capture and record capillaries digitally.
  • Simple single USB2 connection for video and power.
  • Strobed illumination for sharp blur free images
  • Includes CapiScope analysis software

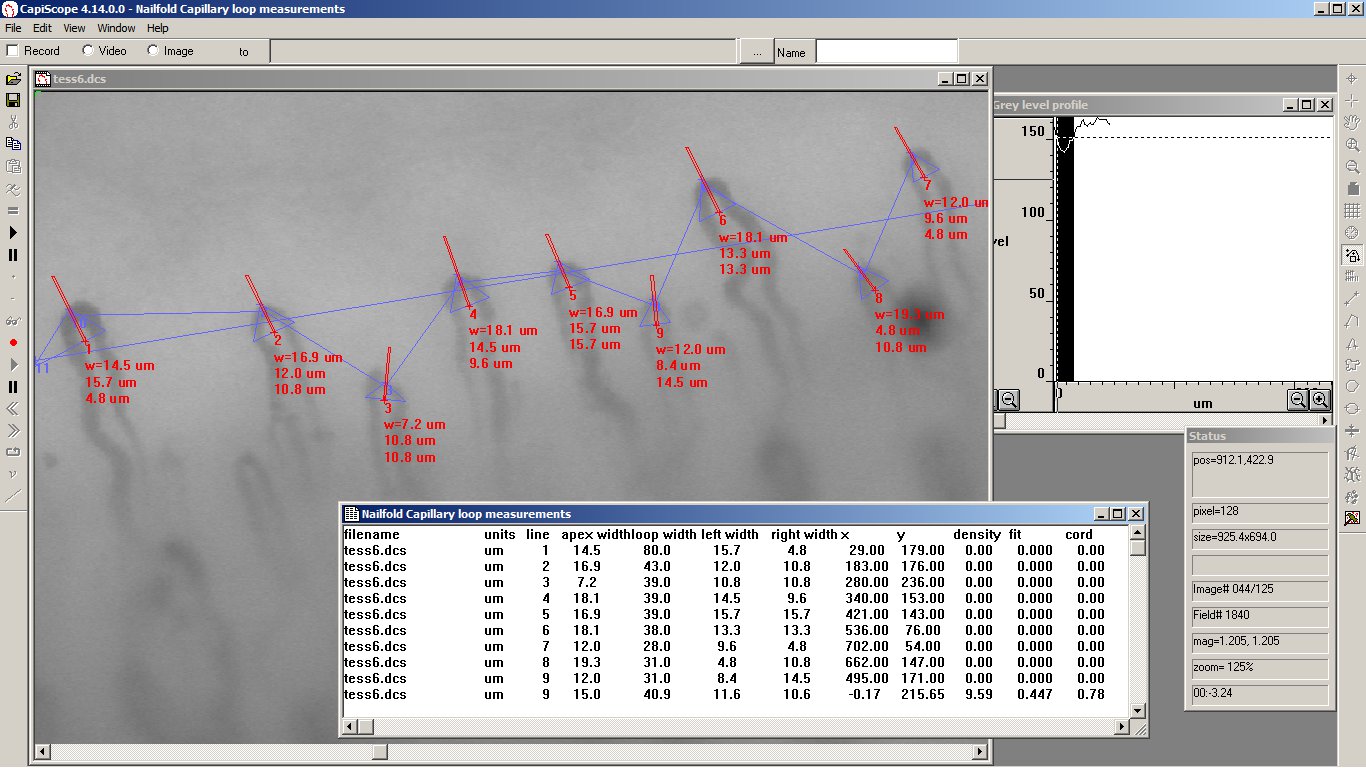

  • Automatic measurement of vessel diameters.
  • Manual and automatic capillary density.

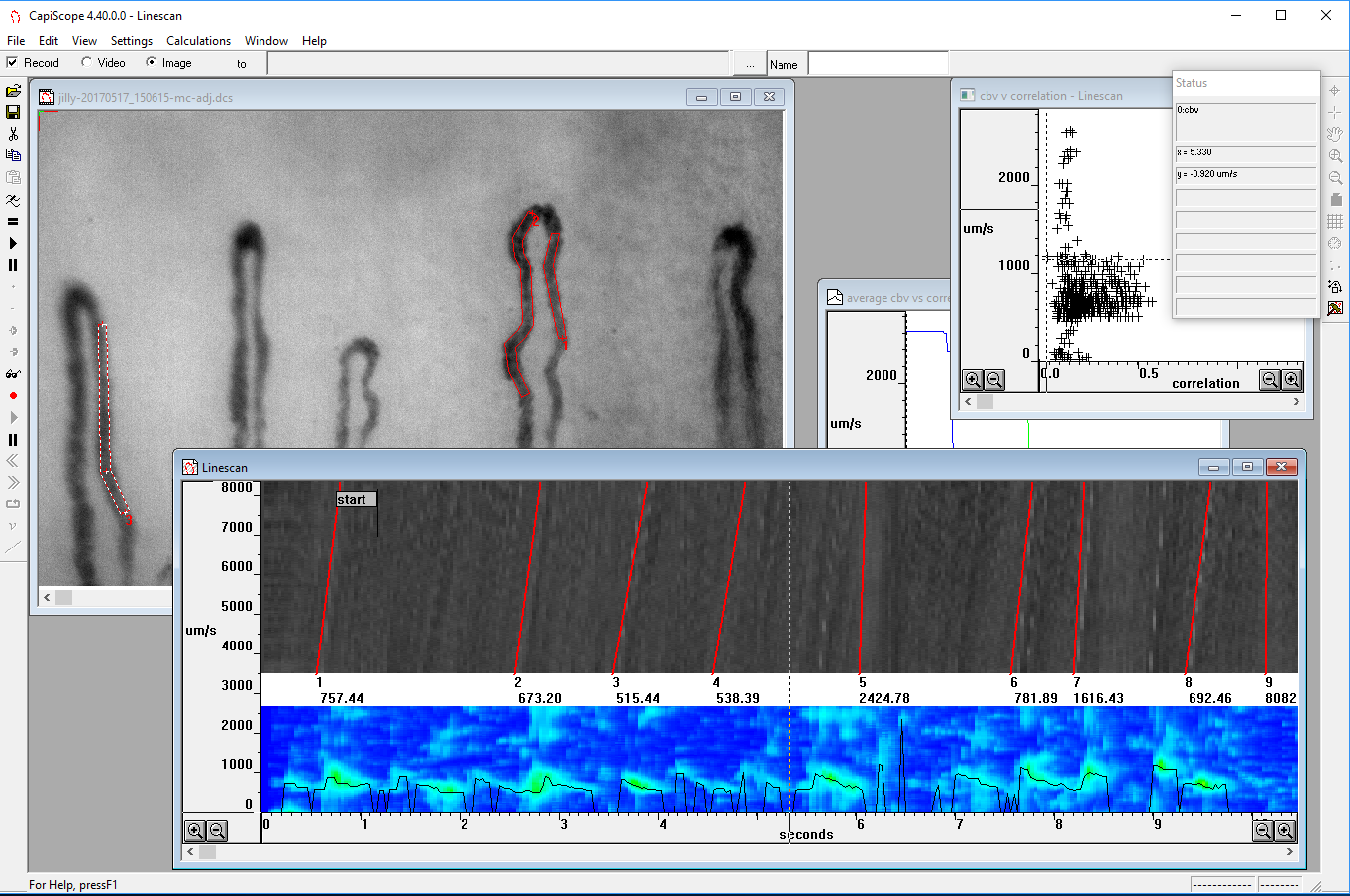

  • Blood cell velocity from 0 to about 2mm/s using video correlation.
  • Fast response time follows cardiac and vasomotion velocity changes.
  • Interchangeable lenses available.

The CapiScope HVCS uses oblique profiled epi-illumination imaging (OPEI) to provide high contrast visualisation of the microcirculation in mucosal and other tissues.

Video and Image Recording

The CapiScope HVCS can display and record video at full frame and full frame rate. The monochrome video is stored uncompressed to avoid problems with information loss found with many digital video recorders. Single frames can be saved in bmp or tiff formats and video can be exported as avi files.



SPECIFICATIONS

Specifications

Imaging

  HVCS HVCS-HR
Image size (pixels) 752 x 480 1280 x 1024
standard lens:
Magnification (μm/pixel) 0.92 0.81
field of view (μm) 692 x 442 1037 x 829
low power lens:
Magnification (μm/pixel) 1.94 1.71
field of view (μm) 1459 x 931 2186 x 1749

Illumination: 4 x 525 nm light sources.

Video output: USB uncompressed.

Dimensions

Body: 100 mm x 42 mm Diameter

cap length: 129.5 mm

cap diameter at tip: 10mm

weight 270g

Operating Conditions

Temperature +10oC to +35oC

Relative Humidity 30% to 75% noncondensing

Altitude 700 to 1060 hPa

Shipping and Storage Conditions

Temperature -10:sup:oC to +45oC

Relative Humidity 95% noncondensing maximum

Software

CapiScope software requires Windows XP, Vista, Windows7 or Windows8.

Standards

Note

This is not a medical device, it has no diagnostic nor therapeutic function. For research use only (except in the UK excluding NI).

EN 60601-1:2006 /AC:2010 /A1:2013 Medical electrical equipment -- Part 1: General requirements for basic safety and essential performance

EN 60601-1-2:2007 Medical electrical equipment -- Part 1-2: General requirements for basic safety and essential performance - Collateral standard: Electromagnetic compatibility - Requirements and tests

EN ISO 14971:2012 Medical devices - Application of risk management to medical devices.

EN 60825-1:2007 Safety of laser products. CLASS 1.

UKCA UK MDR 2002 (SI 2002 No. 618) [ Class 1 non-sterile ]

All devices prior to 2021-01-01: CE Medical Devices Directive 93/42/EEC Annex VII. [ class I device non-sterile ].

Intended Use

The CapiScope Video Microscope is intended solely for the visualization and characterization of the microcirculation system of the surface of mucosal and other tissues. No diagnostic or therapeutic claims are made for the device.
